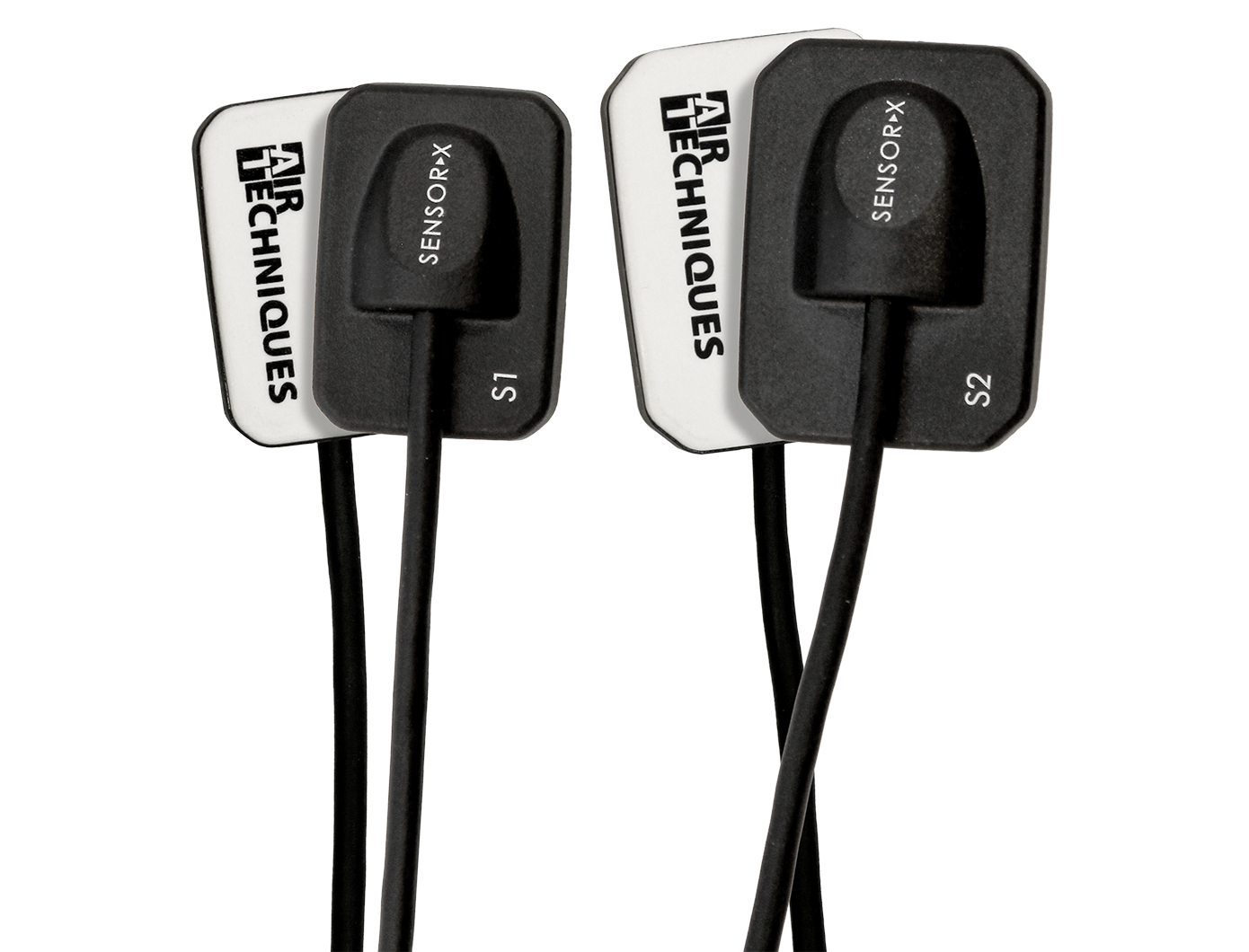

The SensorX intraoral sensor is designed to easily capture intraoral X-ray images that can be viewed, stored, and manipulated for diagnostic use by today’s modern dental practice.

Ease of Placement with Image Quality & Comfort in Mind

  • SensorX rounded corners allow it to be positioned closer to the tooth, helping to produce a sharper image.
  • The white SensorX housing makes it easier to see, place, and position within the mouth.

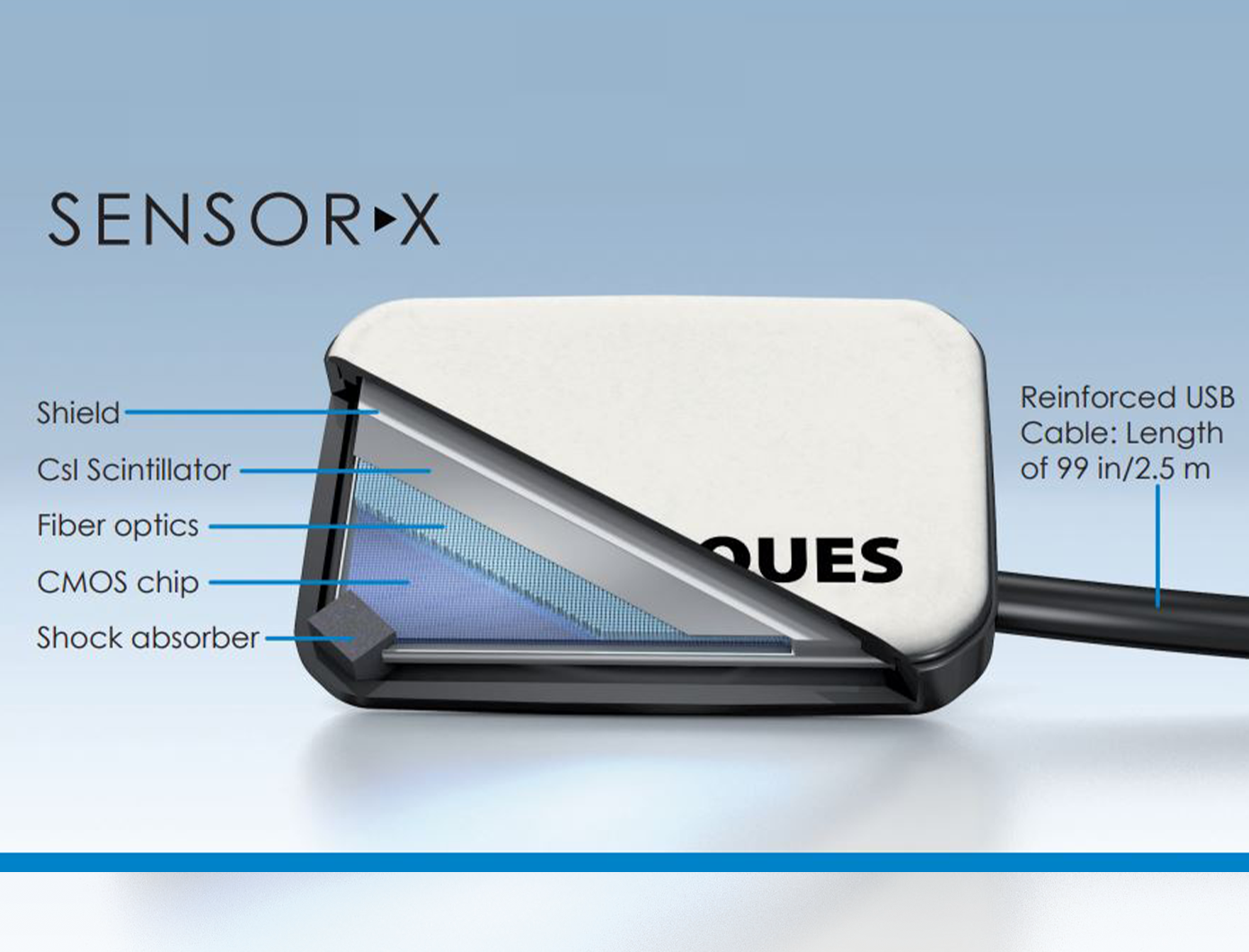

  • Enhanced CsI CMOS technology of the SensorX ensures the fast transmission of high-resolution images.
  • Air Techniques CsI Scintillator layer reduces scatter and concentrates the light collection which dramatically influences the end result image quality.
  • Available in Size #1 and Size #2.
  • Direct USB connection Plug & Play.

Software Advantages

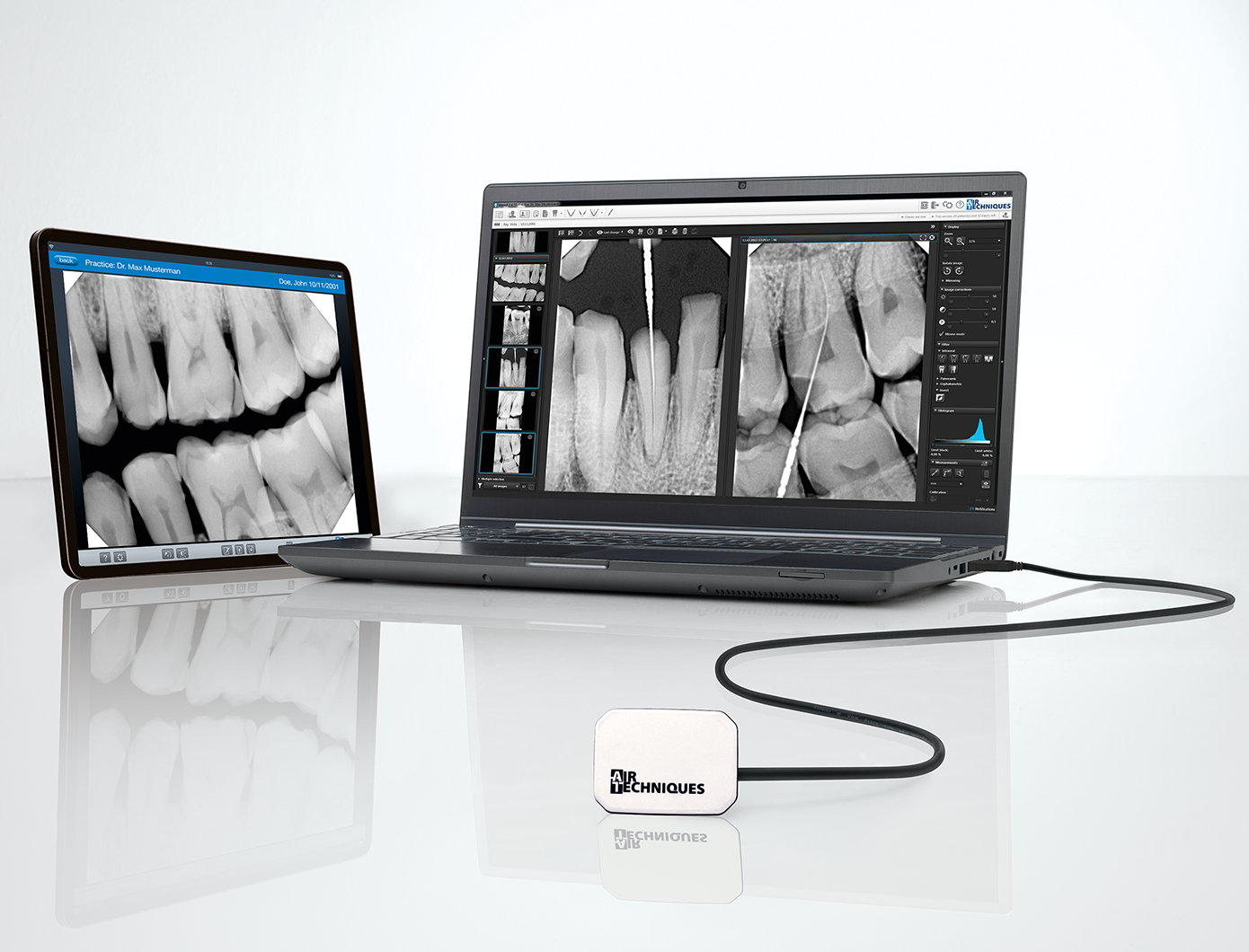

  • VisionX Imaging Software for capturing, storing, and processing images.
  • Standalone or in the office network.
  • Diagnostic support in the form of special filters and versatile image processing (VisionX, DBSWIN, or VistaEasy).
  • Imaging app for iPad (VisionX Mobile Connect).
  • Connection to third-party imaging software via our VistaEasy TWAIN interface.

Complete Hybrid Solution

  • SensorX, combined with ScanX is the ideal complement for a complete hybrid solution.
  • Plug & Play portability across multiple operatories – cost-effective, versatile, and dependable making SensorX the ideal complement to PSPs in endodontics, implantology, and conservative dentistry.
  • Having a combined arsenal of sensors and PSP technology will allow you to easily capture 100% of your images, 100% of the time.
  • Diagnostic tools that deliver speed, efficiency, and comfort.
  • No two patients are alike: Pediatrics to Geriatrics, those with pronounced Tori, gaggers, or even those individuals with special needs; each provides unique challenges. Always have the correct diagnostic tools available to best serve all of our patients.
G9510A Sensor size 1
Sensor Size 1 Dimensions (L x W x D) 1.54 x 1.07 x .25 in
39.0 x 27.4 x 6.3 mm
Number of Pixels 1,050 x 1,580 = 1,659,000
G9520A Sensor size 2
Sensor Size 2 Dimensions (L x W x D) 1.76 x 1.30 x .25 in
44.7 x 33.1 x 6.3 mm
Number of Pixels 1,368 x 1,896 = 2,593,728
Pixel Size (μm) 19 x 19
Theoretical Resolution (LP/mm) 26.3
Effective Resolution (LP/mm) 20.0
Cable Length 99 in/2.51 m
Storage Wall- or pipe-mounted
