Clio Sensor Package with I5HD Cam and Integration Included

Regular price $13,995.00 USD
Regular price Sale price $13,995.00 USD
Sale Sold out
DESCRIPTION

Clio Digital X-Ray Sensors Specs & Warranty

Clio X-Ray Sensors

Size 1 Sensor

Size 2 Sensor

External Dimensions

24.35 x 36.73 mm

30.49 x 42.80 mm

Active Area

19.95 x 30.02 mm

25.99 x 36.02 mm

Sensor Plate Thickness

5.41 mm

5.41 mm

Sensor Cable Length

3 meters

3 meters

Image Resolution

26.3 lp/mm theoretical
20lp/mm actual

26.3 lp/mm theoretical
20lp/mm actual

Image Size

1580 x 1050 pixels

1896 x 1368 pixels

Image Pixel Size

19 x 19 microns

19 x 19 microns



Minimum Requirements

Recommended Requirements

Windows XP, Windows Vista, Windows 7, Windows 8 (32-bit and 64-bit), or Mac OS X

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 (32-bit and 64-bit), or Mac OS X

Imaging Software Options: SOTA Image, Dexis 9 and Dexis 10, Vixwin Platinum, Eaglesoft, Kodak Dental Imaging, Sidexis, Apteryx, Tigerview, Adstra, and more

Imaging Software Options: SOTA Image, Dexis 9 and Dexis 10, Vixwin Platinum, Eaglesoft, Kodak Dental Imaging, Sidexis, Apteryx, Tigerview, Adstra, and more

Intel Pentium IV 1.3 GHz or faster

Intel Core2 Duo 1.5 GHz or faster

512 MB of RAM or more

2 GB RAM or more

50GB available disk space or more

50 GB available disk space or more

32-bit color, 1024x768 video card

32-bit color, 1024x768 video card

Standard LCD Monitor with at least 1024x768 resolution

Standard LCD Monitor with at least 1024x768 resolution


Innovating Digital X-Ray Sensors

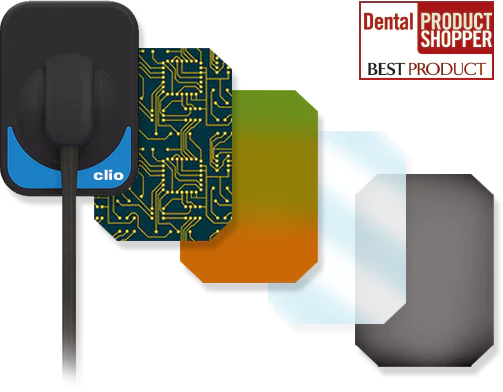

Clio is equipped with next-gen CMOS fiber optic technology with Csl Scintillators, allowing us to provide the largest active area plates in the industry. Being able to theoretically create 26 line pairs allows Clio to take the highest quality images of almost any x-ray sensor. With our SOTA Image Software, we can guarantee our digital dental x-ray images will match or surpass the quality of any competing system.

Built to Outperform and Outlast the Competition

Our x-ray sensor is built to withstand the day-to-day wear and tear of your practice. The patented Kevlar reinforced cable helps prevent damage from coming to the digital x-ray sensor. Unlike other dental sensors our USB cable is fully replaceable, saving you from being forced to buy a brand new sensor if it breaks. Clio’s is one of the only digital x-ray sensors that is fully water submersible, allowing you to easily clean it helping with infection control.

Make Your Workflow Easy

Clio’s integration allows you to use our digital x-ray sensor with most major imaging software. With Clio, there are no disruptions to workflow with additional pop-ups or inconveniences. By integrating with your imaging software, our dental x-ray sensor is able to take advantage of your imaging software capabilities, making implementation and workflow easy.

Better Experience

Clio dental x-ray sensors have rounded corners providing optimal patient comfort. Size #1 and #2 are available to cover all x-rays for a full mouth series for both adults and children.

Lower Cost

Clio x-ray sensors allow you to take the highest quality images without breaking the bank. Fully customizable sensor settings and image filters allow for a seamless workflow that lets you see more patients.

Superior Images

Accurately and confidently provide patient diagnosis. Better image quality gives you the precision you need to communicate with patients, promote understanding, and gain trust.

Ambidextrous Slide-Focus and Capture Button

Our slide-focus covers the maximum width and area on the camera body, giving you—single-handedly—the ability to easily adjust focus and capture images without having to re-adjust your hand placement or search for a tiny component. However you hold the camera, by the tip of your thumb or index finger, the large focus slider is designed not to impede your flow, letting you make decisions on the fly without even looking.

CMOS Sensor – 1/3” Large Pixel With Native HD Resolution

MJPEG Output Resolution – 1280 X 720P and alternate 640 X 480 for backwards compatibility

Signal Output – USB 2.0 forward compatible with USB 3.X

Angle of View – 61 degrees

Focus Range – 2mm-200+mm (infinity)

Maximum Magnification – 640x480:20X -1280x720:50X

Lighting – 6 True White LEDs

Distortion – <5%

Driver Type, – UVC (USB Video Class)

Operating Systems – Windows 7/8/10 (32/64 bit) and macOS Sierra+

5-Year Warranty

For 2 years, SOTA will repair or exchange parts or equipment due to manufacturer defect free of charge. As a complimentary service, with every Clio Digital X-ray Sensor purchase, sensors that do not fall under the 2-year warranty will receive significant discounts for five years.

Free 60-Day SotaCare

From date of purchase, you will receive free unlimited tech support via phone, internet or video conference, free software upgrades, loaner sensors during any repair and free shipping, regardless of number of sensors.

  • Free Shipping

  • Hassle-Free Exchanges
